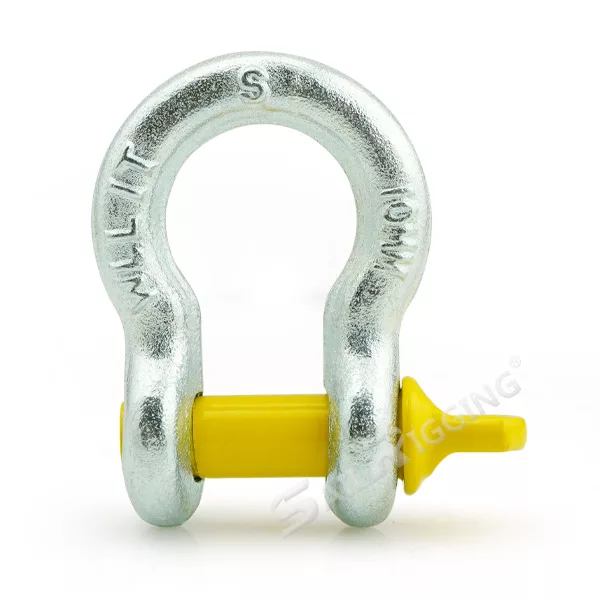

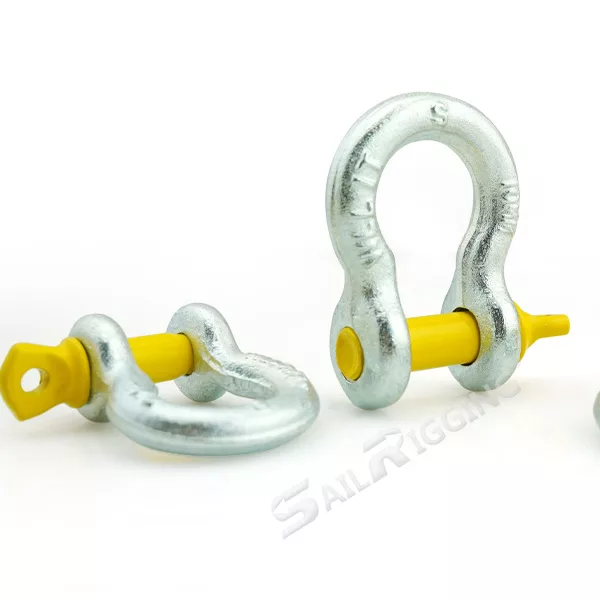

AS2741 Grade S Bow Shackles are Australian Standard Shackles, made of high tensile steel, marked Grade S on the top of the shackle. They are wide, round bow bow allow for better load distribution, making them ideal for connecting ropes, chains or cables. AS2741 grade S bow shackles manufactured by Sail Rigging are compliant with AS2742-2002 and European Standard EN13889-2003, ensures durability and performance in rigging and lifting.
Feature:

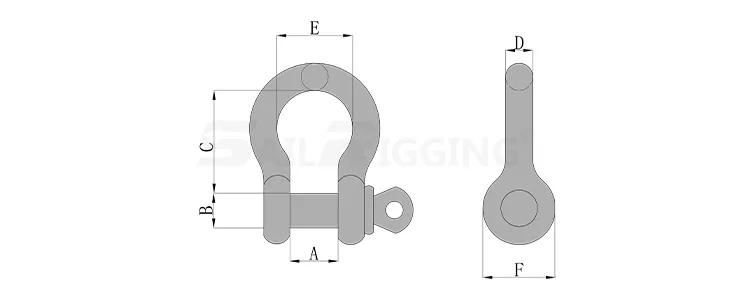

| Size๏ผmm๏ผ | WLL(t๏ผ | Dimensions(mm) | Weight(kg) | |||||
| A | B | C | D | E | F | |||
| 5 | 0.33 | 10 | 6 | 22 | 5 | 15 | 14 | 0.02 |
| 6 | 0.5 | 12 | 8 | 29 | 6 | 20 | 17 | 0.05 |
| 8 | 0.75 | 13 | 10 | 31 | 8 | 21 | 21 | 0.09 |
| 10 | 1 | 17 | 11 | 37 | 10 | 26 | 25 | 0.15 |
| 13 | 2 | 21 | 16 | 48 | 13 | 33 | 33 | 0.37 |
| 16 | 3.2 | 27 | 19 | 61 | 16 | 43 | 40 | 0.65 |
| 19 | 4.7 | 32 | 22 | 72 | 19 | 51 | 48 | 1.06 |
| 22 | 6.5 | 37 | 25 | 84 | 22 | 58 | 54 | 1.56 |
| 25 | 8.5 | 43 | 29 | 95 | 25 | 68 | 60 | 2.32 |
| 29 | 9.5 | 46 | 32 | 108 | 29 | 74 | 67 | 3.09 |
| 32 | 12 | 52 | 35 | 119 | 32 | 83 | 76 | 4.31 |
| 35 | 13.5 | 57 | 38 | 133 | 35 | 92 | 84 | 6.01 |
| 38 | 17 | 60 | 44 | 146 | 38 | 98 | 92 | 8.03 |
| 44 | 35 | 73 | 51 | 178 | 44 | 127 | 110 | 13.79 |
| 51 | 35 | 83 | 57 | 197 | 51 | 146 | 127 | 20.42 |
| 57 | 42.5 | 95 | 53 | 222 | 57 | 160 | 143 | 26.06 |
| 63 | 55 | 105 | 70 | 267 | 63 | 184 | 152 | 38.8 |
1.4 perfect forging lines โ our main products include standard rigging products and customized products, the annual production capacity is 3000T.
2.Track the whole production process from raw materials to finished products and strictly control the process flow.
3.With an experienced R&D and design team of 5 people, we can make professional 3D modeling and product animation,provide you product and packaging customization.
4.Insisted on โcustomer-centricโ business philosophy, and strive to provide customers with high quality, efficient and personalized service.
5.Strictly control quality of every batch product, inspecting and test before shipment.
|
