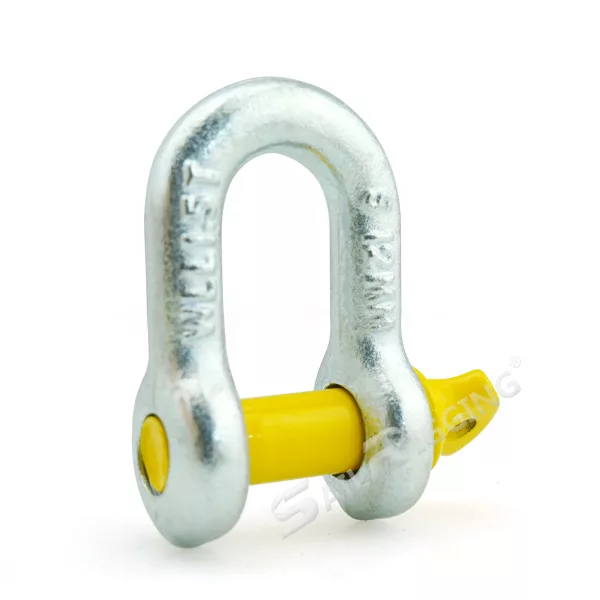

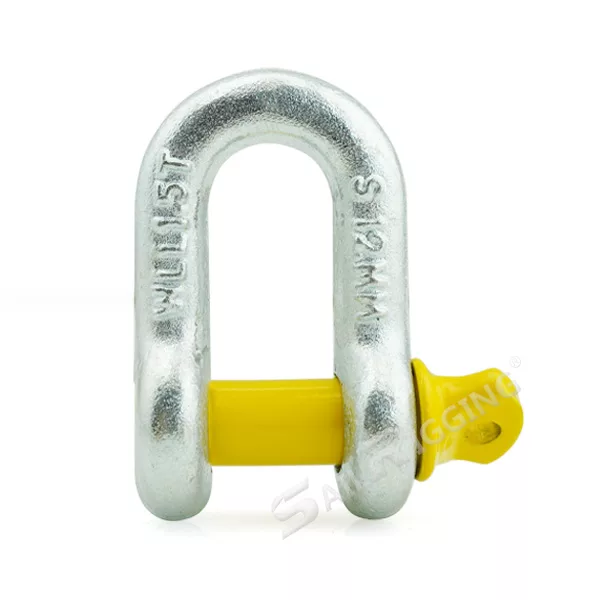

AS2471 Grade S Dee Shackles are Australian Standard Shackles, made of high tensile steel, marked grade S on the top of the shackles. The pins are made of alloy steel, which enhance safety during lifting and rigging. AS2741 grade S dee shackles manufactured by Sail Rigging, are compliant with AS2741-2002 and European Standard EN13889-2003, widely used in industrial, construction and marine.
Feature:

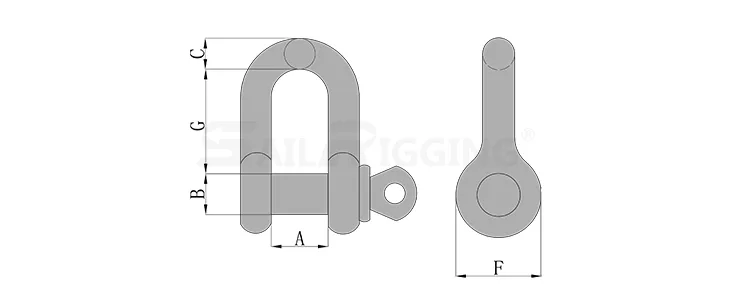

| Size๏ผmm๏ผ | WLL(t๏ผ | Dimensions(mm) | Weight(kg) | ||||
| A | B | C | F | G | |||
| 6 | 0.5 | 12 | 8 | 6 | 17 | 22 | 0.05 |
| 8 | 0.75 | 13 | 10 | 8 | 21 | 26 | 0.09 |
| 10 | 1 | 17 | 11 | 10 | 25 | 32 | 0.14 |
| 11 | 1.5 | 18 | 13 | 11 | 27 | 37 | 0.17 |
| 13 | 2 | 21 | 16 | 13 | 33 | 41 | 0.29 |
| 16 | 3.2 | 27 | 19 | 16 | 40 | 51 | 0.63 |
| 19 | 4.7 | 32 | 22 | 19 | 48 | 60 | 1.02 |
| 22 | 6.5 | 37 | 25 | 22 | 54 | 71 | 1.53 |
| 25 | 8.5 | 43 | 29 | 25 | 60 | 81 | 2.41 |
| 29 | 9.5 | 46 | 32 | 29 | 67 | 90 | 3.09 |
| 32 | 12 | 52 | 35 | 32 | 76 | 100 | 4.31 |
| 35 | 13.5 | 57 | 38 | 35 | 84 | 113 | 6.01 |
| 38 | 17 | 60 | 44 | 38 | 92 | 124 | 8.03 |
| 44 | 25 | 73 | 51 | 44 | 110 | 146 | 11.48 |
| 51 | 35 | 83 | 57 | 51 | 127 | 171 | 20.42 |
| 57 | 42.5 | 95 | 63 | 57 | 143 | 181 | 26.06 |
| 63 | 55 | 105 | 70 | 63 | 152 | 203 | 38.8 |
1.4 perfect forging lines โ our main products include standard rigging products and customized products, the annual production capacity is 3000T.
2.Track the whole production process from raw materials to finished products and strictly control the process flow.
3.With an experienced R&D and design team of 5 people, we can make professional 3D modeling and product animation,provide you product and packaging customization.
4.Insisted on โcustomer-centricโ business philosophy, and strive to provide customers with high quality, efficient and personalized service.
5.Strictly control quality of every batch product, inspecting and test before shipment.
|
