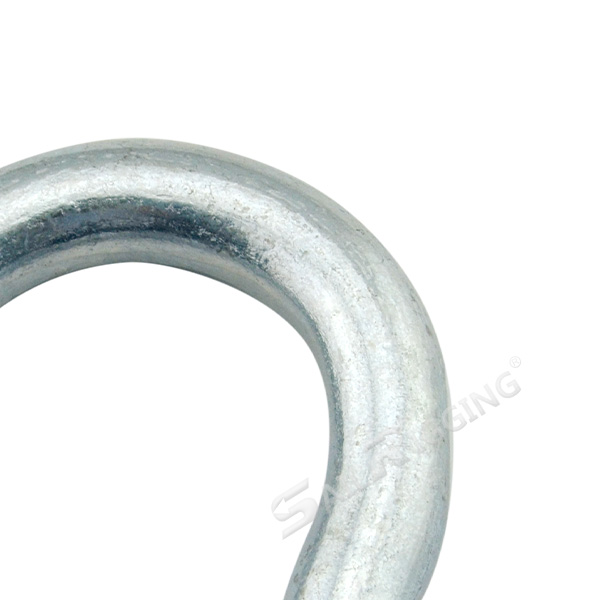

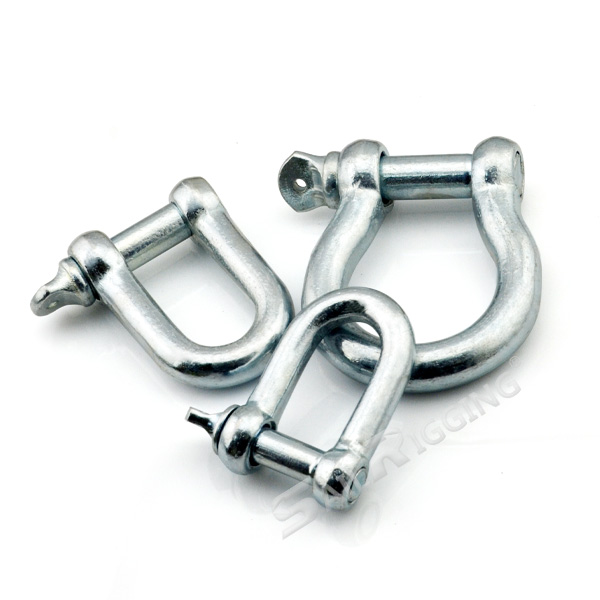

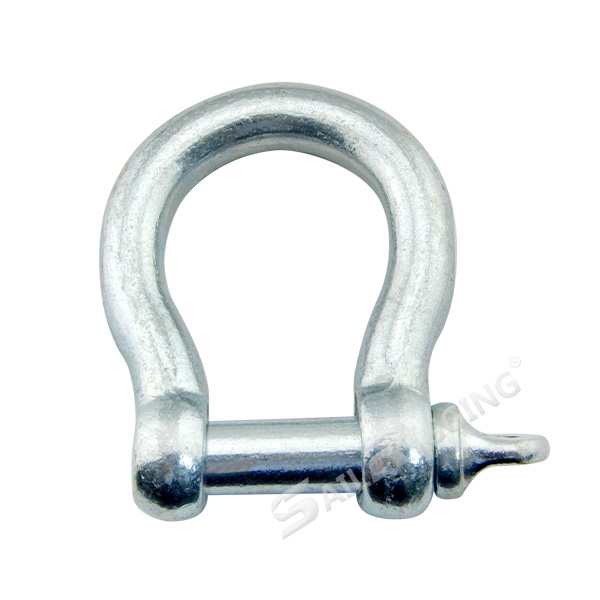

European Type Bow Shackles, are large bow shackles, made from high tensile carbon steel, free forged and electro galvanized. It features a wide, round bow for greater load distribution when attaching ropes, chians or cables. It is equiped with a secure pin, ensures safety during operation. Sail Rigging bow shackle is a durable and reliable rigging component designed for heavy duty lifting and securing tasks.
Feature:
Material : Q235 Carbon Steel
Technology: Free Forged

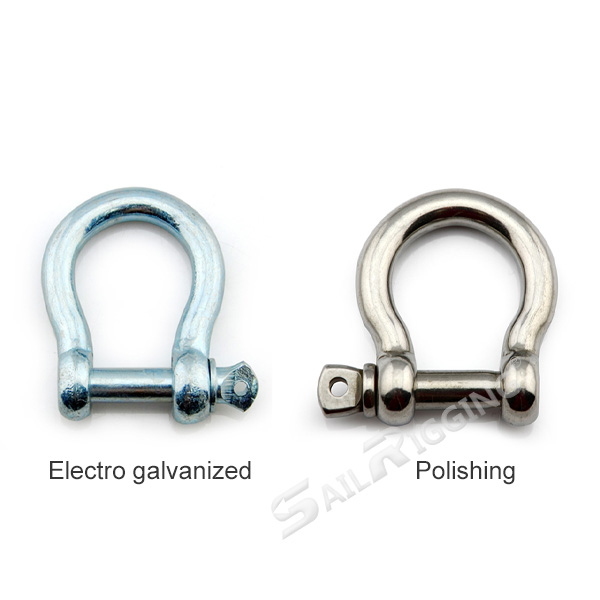

Surface Finish: Electro Galvanized
WLL: 80-8000KG
Usage: Lifting and connecting, Wire rope fittings, chain fittings, Maring hardware fittings
| WLL (kg) |
Size(D) (mm) |
WLL (kg) |

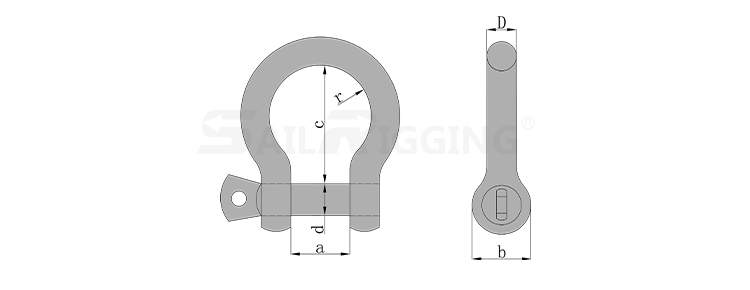

Dimensions(mm) | Weight (kg) |
||||
| d | a | c | r | b | ||||
| 80 | 5 | 80 | 5 | 10 | 19 | 8 | 11 | 0.016 |
| 100 | 6 | 100 | 6 | 13 | 25 | 10 | 14 | 0.024 |
| 200 | 8 | 200 | 8 | 16 | 32 | 12 | 18 | 0.050 |
| 320 | 10 | 320 | 10 | 19 | 38 | 16 | 20 | 0.088 |
| 520 | 12 | 520 | 12 | 25 | 51 | 19 | 26 | 0.180 |
| 800 | 16 | 800 | 16 | 32 | 64 | 28 | 33 | 0.410 |
| 1100 | 20 | 1100 | 20 | 38 | 76 | 33 | 40 | 0.776 |
| 1500 | 22 | 1500 | 22 | 44 | 89 | 37 | 50 | 1.150 |
| 2100 | 25 | 2100 | 25 | 51 | 100 | 40 | 57 | 1.650 |
| 3000 | 28 | 3000 | 28 | 57 | 115 | 47 | 68 | 2.400 |
| 3500 | 32 | 3500 | 32 | 64 | 127 | 52 | 73 | 3.500 |
| 5000 | 38 | 5000 | 38 | 76 | 152 | 63 | 85 | 6.350 |
| 7000 | 45 | 7000 | 45 | 90 | 180 | 75 | 96 | 11.500 |
| 8000 | 50 | 8000 | 50 | 102 | 200 | 78 | 108 | 14.000 |
1.4 perfect forging lines โ our main products include standard rigging products and customized products, the annual production capacity is 3000T.
2.Track the whole production process from raw materials to finished products and strictly control the process flow.
3.With an experienced R&D and design team of 5 people, we can make professional 3D modeling and product animation,provide you product and packaging customization.
4.Insisted on โcustomer-centricโ business philosophy, and strive to provide customers with high quality, efficient and personalized service.
5.Strictly control quality of every batch product, inspecting and test before shipment.
|
