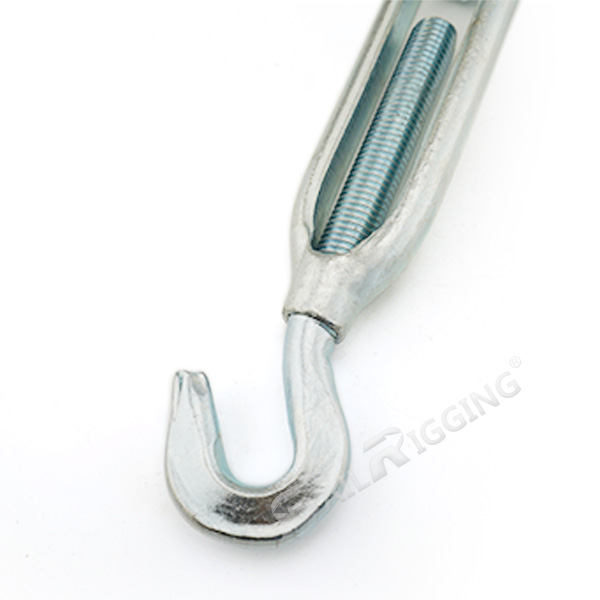

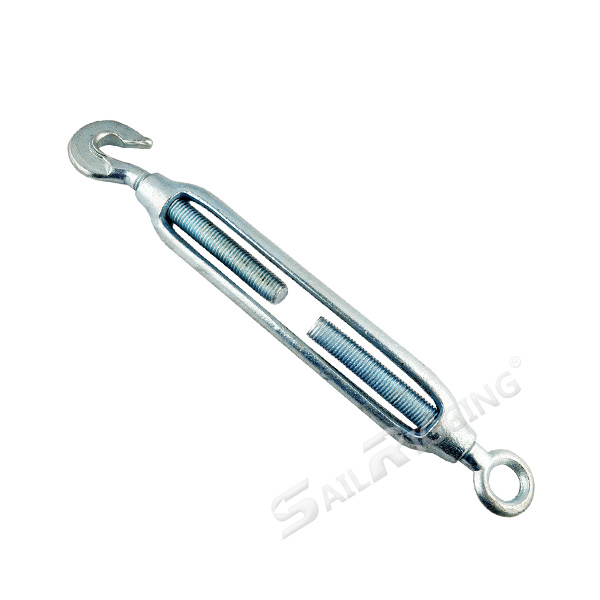

JIS Type Frame Turnbuckles are made from high tensile carbon steel, ensure turnbuckles strength and durablity. Finished with electro galvanization or hot dip galvanization, turnbuckles are resistance to rust and corrosion, extending its lifetime in harsh environment. JIS type turnbuckles eye and hook are widely used to tension and secure in in construction, marine and industrial application.
Feature:

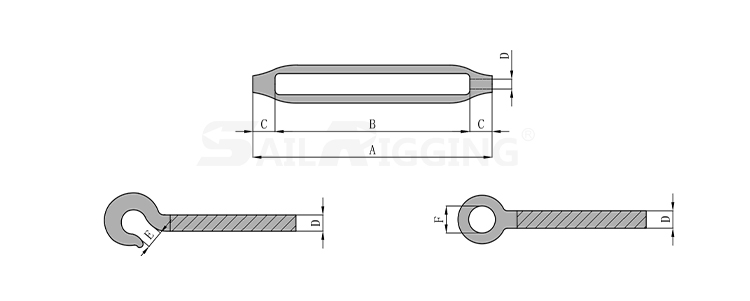

| Size (D) | Body Only | Hook&Eye | |||||||
| A | B | C | T.L | W/PC | T.L | W/PC | |||
| mm | in | mm | in | mm | mm | t | lbs | t | lbs |
| 6 | 1/4 | 100.00 | 4 | 78.00 | 11.00 | 1.00 | 2.21 | 0.04 | 0.25 |
| 8 | 5/16 | 125.00 | 5 | 100.00 | 12.50 | 1.20 | 2.65 | 0.08 | 0.48 |
| 9 | 3/8 | 150.00 | 6 | 120.00 | 12.50 | 1.50 | 3.31 | 0.15 | 0.65 |
| 12 | 1/2 | 200.00 | 8 | 164.00 | 18.00 | 2.00 | 4.41 | 0.35 | 1.29 |
| 16 | 5/8 | 250.00 | 10 | 202.00 | 21.50 | 3.00 | 6.62 | 0.70 | 2.32 |
| 19 | 3/4 | 300.00 | 12 | 250.00 | 25.00 | 4.00 | 8.83 | 1.00 | 3.93 |
| 22 | 7/8 | 325.00 | 13 | 269.00 | 28.00 | 5.00 | 11.03 | 1.50 | 5.69 |
| 25 | 1 | 350.00 | 14 | 285.00 | 32.50 | 6.00 | 13.24 | 2.00 | 8.32 |
| 32 | 1-1/4 | 400.00 | 16 | 310.00 | 45.00 | 8.00 | 17.65 | 3.00 | 16.59 |
| 38 | 1-1/2 | 450.00 | 18 | 350.00 | 55.00 | 10.00 | 22.07 | 4.00 | 28.24 |
1.4 perfect forging lines โ our main products include standard rigging products and customized products,the annual production capacity is 3000T.
2.Track the whole production process from raw materials to finished products and strictly control the process flow.
3.With an experienced R&D and design team of 5 people, we can make professional 3D modeling and product animation,provide you product and packaging customization.
4.Insisted on โcustomer-centricโ business philosophy, and strive to provide customers with high quality, efficient and personalized service.
5.Strictly control quality of every batch product, inspecting and test before shipment.
|
