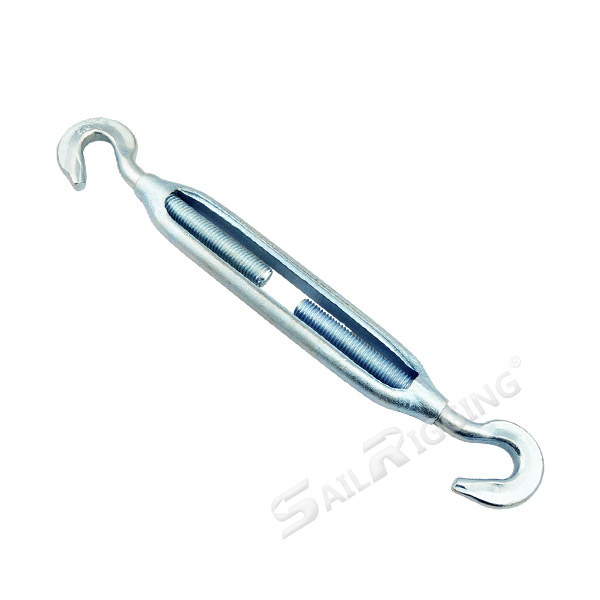

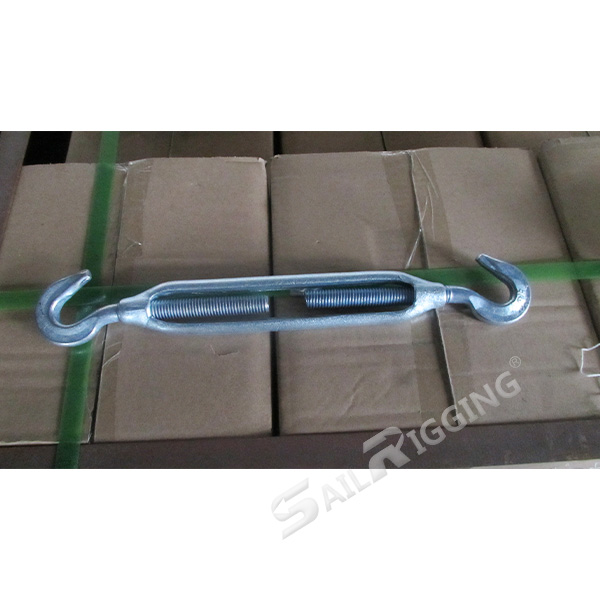

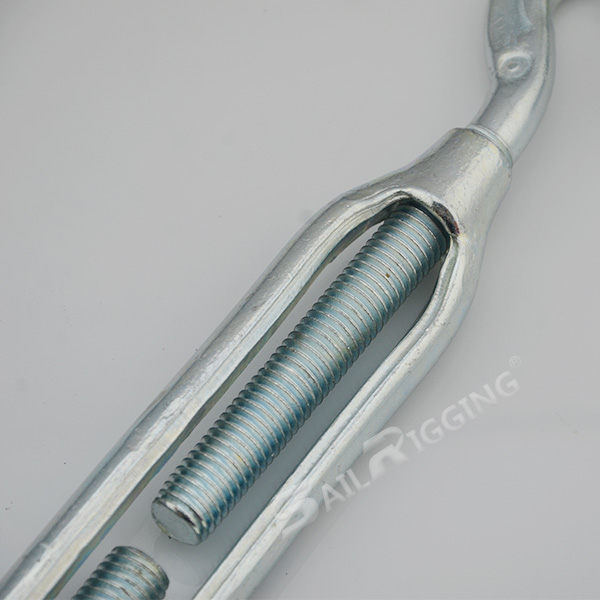

JIS type turnbuckles hook and hook are made from high strength carbon steel, electro galvanized, meet Japanese Industrial Standards. These turnbuckles have double hooks on both ends, which allows for quick and easy attachement and detachment, commonly used in construction, marine, industrial projects.
Feature:

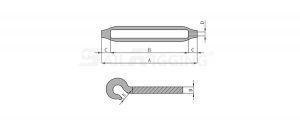

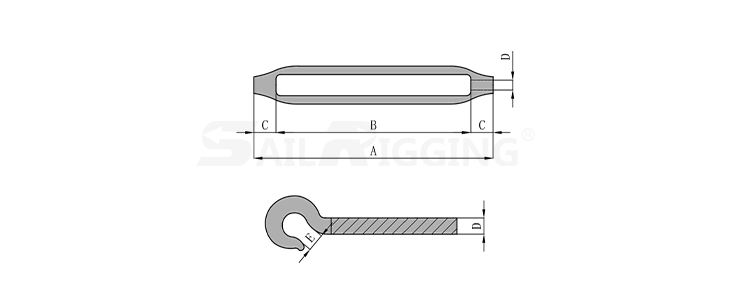

| Size (D) | Body Only | Hook&Hook | ||||||||
| A | B | C | T.L | W/PC | E | T.L | W/PC | |||
| mm | in | mm | in | mm | mm | t | lbs | mm | t | lbs |
| 6 | 1/4 | 100.00 | 4 | 78.00 | 11.00 | 1.00 | 2.21 | 9.00 | 0.04 | 0.25 |
| 8 | 5/16 | 125.00 | 5 | 100.00 | 12.50 | 1.20 | 2.65 | 9.00 | 0.08 | 0.47 |
| 9 | 3/8 | 150.00 | 6 | 120.00 | 12.50 | 1.50 | 3.31 | 11.00 | 0.15 | 0.64 |
| 12 | 1/2 | 200.00 | 8 | 164.00 | 18.00 | 2.00 | 4.41 | 16.00 | 0.35 | 1.26 |
| 16 | 5/8 | 250.00 | 10 | 202.00 | 21.50 | 3.00 | 6.62 | 19.00 | 0.70 | 2.27 |
| 19 | 3/4 | 300.00 | 12 | 250.00 | 25.00 | 4.00 | 8.83 | 20.00 | 1.00 | 3.91 |
| 22 | 7/8 | 325.00 | 13 | 269.00 | 28.00 | 5.00 | 11.03 | 21.00 | 1.50 | 5.74 |
| 25 | 1 | 350.00 | 14 | 285.00 | 32.50 | 6.00 | 13.24 | 26.00 | 2.00 | 8.21 |
| 32 | 1-1/4 | 400.00 | 16 | 310.00 | 45.00 | 8.00 | 17.65 | 34.00 | 3.00 | 16.42 |
| 38 | 1-1/2 | 450.00 | 18 | 350.00 | 55.00 | 10.00 | 22.07 | 35.00 | 4.00 | 48.54 |
1.4 perfect forging lines โ our main products include standard rigging products and customized products,the annual production capacity is 3000T.
2.Track the whole production process from raw materials to finished products and strictly control the process flow.
3.With an experienced R&D and design team of 5 people, we can make professional 3D modeling and product animation,provide you product and packaging customization.
4.Insisted on โcustomer-centricโ business philosophy, and strive to provide customers with high quality, efficient and personalized service.

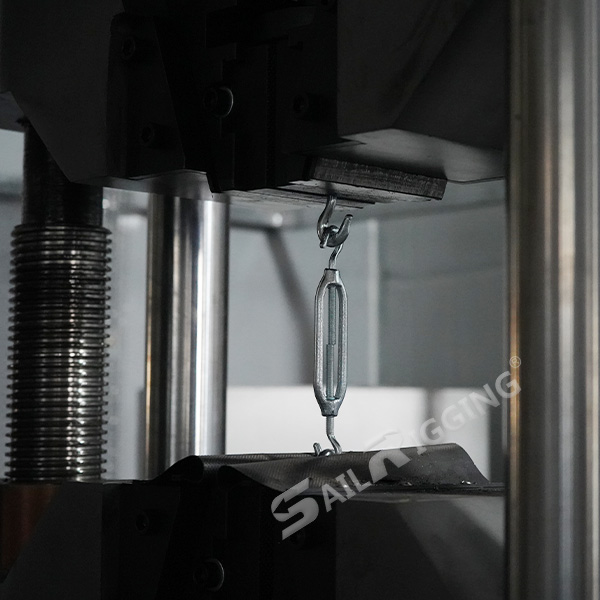

5.Strictly control quality of every batch product, inspecting and test before shipment.
|
