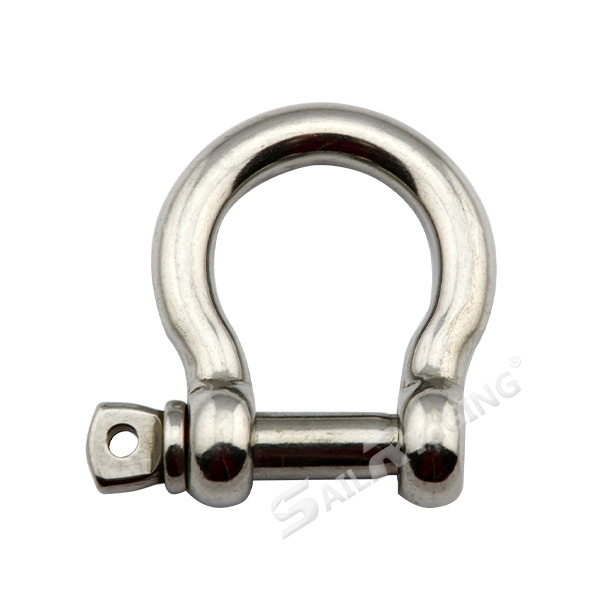

STAINLESS STEEL EUROPEAN TYPE LARGE BOW SHACKLE

STAINLESS STEEL EUROPEAN TYPE LARGE BOW SHACKLE

Feature:

  • Material: Stainless Steel SS304/SS316
  • Standard: European Type
  • Size: From M4 to M25
  • Brand: Sail Rigging
  • Use as: Chain and Wire Rope Accessories
  • Function: For Lifting Industry

share to:

Product

Description

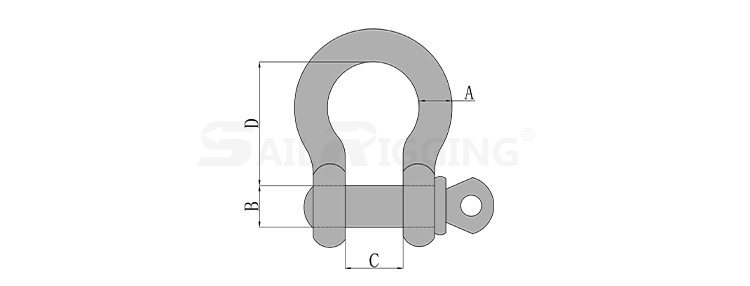

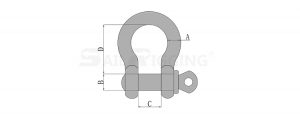

European Type Large Bow Shackle drg
Size(mm) Dimensions(mm) WLL(kg)
A B C D
4 4 4 8 16 80
5 5 5 10 19 100
6 6 6 12 24 200
8 8 8 16 32 320
10 10 10 20 40 520
12 12 12 24 48 800
14 14 16 28 56 1100
16 16 20 32 64 1500
18 18 22 36 72 2100
20 20 25 40 76 3000
22 22 28 44 88 3500
25 25 32 50 100 5000
