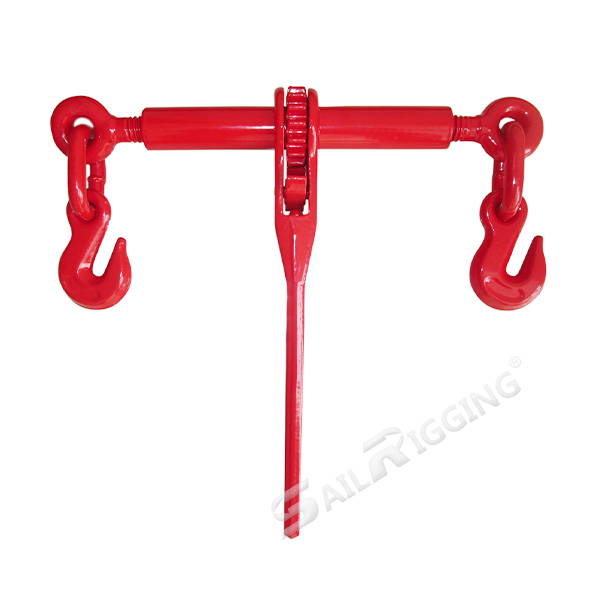

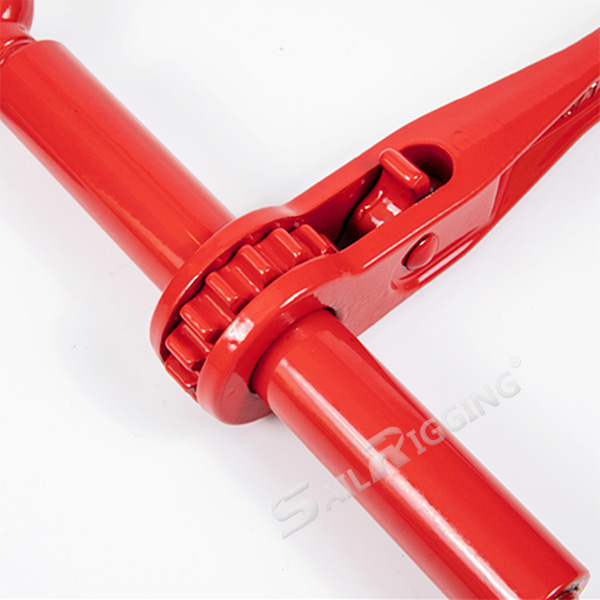

Ratchet Load Binders are made from foged steel, quenched & tempered. These binder use two types of simple machines and has two tension hooks on each end and handle. Having both simple machines can multiply the force manually applied to the tie down assembly.It is used to tighten chain to secure and tie down heavy duty loads.
Feature:
| Min-Max Chain Size(in) | WLL (lbs) |
Proof Load(lbs) | Breaking Load (lbs) |
Weight (lbs) |
Handle Length (in) |

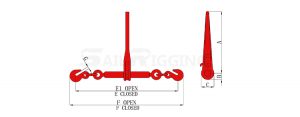

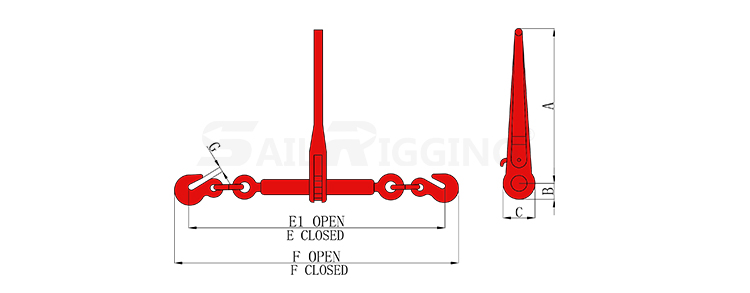

Dimensions(in) | ||||||
| A | B | C | E | E1 | F | G | ||||||
| 1/4-5/16 | 2200 | 4400 | 7800 | 3.52 | 7.16 | 7.16 | 0.89 | 1.77 | 16.22 | 21.26 | 17.79 | 0.35 |
| 5/16-3/8 | 5400 | 10800 | 19000 | 12.11 | 14.00 | 14.00 | 1.38 | 2.75 | 22.94 | 30.94 | 25.13 | 0.50 |
| 3/8-1/2 | 9200 | 18400 | 33000 | 14.70 | 14.00 | 14.00 | 1.38 | 2.75 | 22.94 | 33.25 | 27.63 | 0.63 |
| 1/2-5/8 | 13000 | 26000 | 46000 | 14.55 | 14.00 | 14.00 | 1.38 | 2.75 | 22.94 | 24.38 | 29.44 | 0.72 |
1.4 perfect forging lines โ our main products include standard rigging products and customized products,the annual production capacity is 3000T.
2.Track the whole production process from raw materials to finished products and strictly control the process flow.
3.With an experienced R&D and design team of 5 people, we can make professional 3D modeling and product animation,provide you product and packaging customization.
4.Insisted on โcustomer-centricโ business philosophy, and strive to provide customers with high quality, efficient and personalized service.

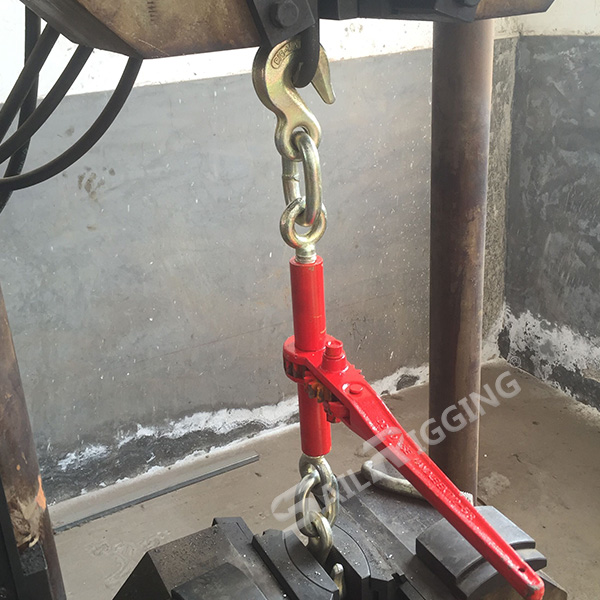

5.Strictly control quality of every batch product, inspecting and test before shipment.
|
