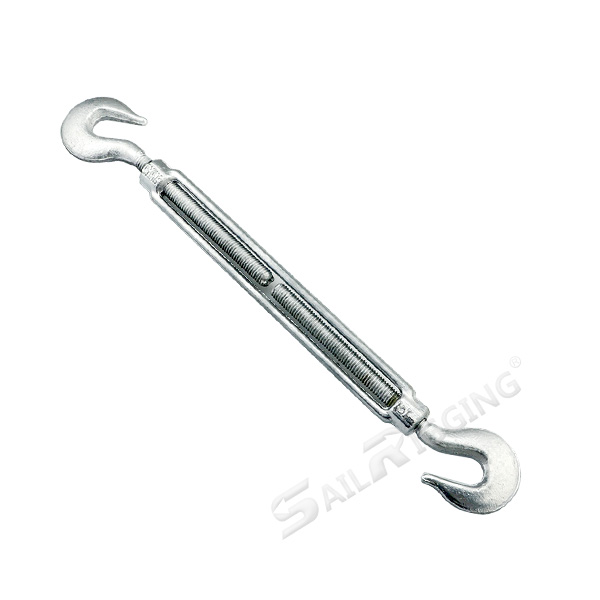

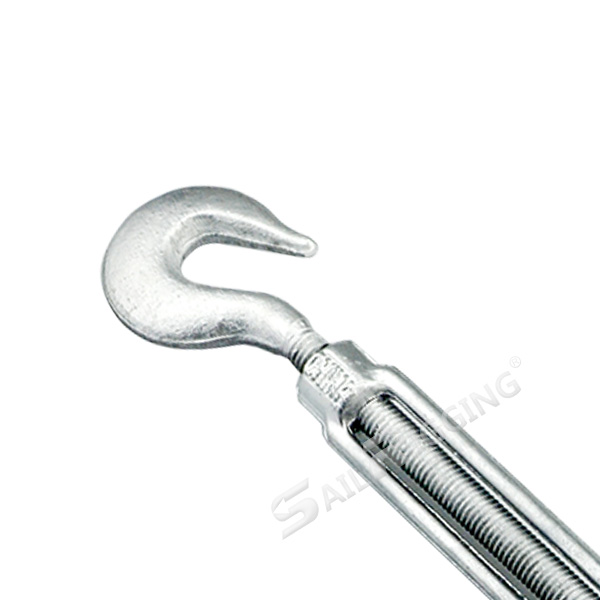

US TYPE TURNBUCKLE WITH HOOK & HOOK

US Type Drop Forged Hook And Hook Turnbuckles are made from high tensile carbon steel #45, hot dip galvanized or eletro galvanized. The ultimate load is 5 times of the WLL, which ensures reliable performance under heavy loads. It has double hooks at both ends to tension cable or wire rope. Our US type drop forged turnbuckles meet or exceed the performance requirement of ASTM F1145 and ASME B30.26.

Feature:

Standard: US Standard
Material: 45# Carbon Steel
Technology: Drop Forged
Surface Finish: Hot Dip Galvanized
Ultimate Load: 5 times of the WILL
Usage: For Lifting Industry, Marine, etc.

share to:

Product

Description

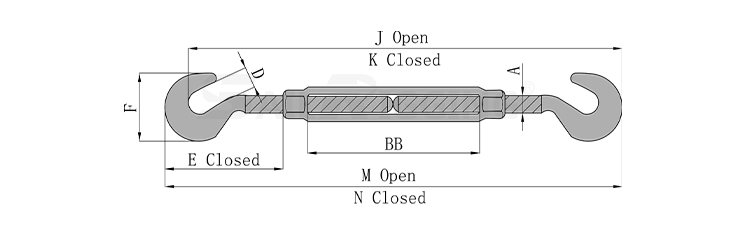

Size (in)	WLL(lbs)	Weight (lbs)	Dimensions(in)
Size (in)	WLL(lbs)	Weight (lbs)	A	E Closed	J Open	K Closed	M Open	N Closed	D	F	BB
1/4*4	400	0.33	0.25	1.59	11.12	7.12	11.94	7.94	0.45	1.27	4.00
5/16*4 1/2	700	0.52	0.31	1.94	12.81	8.31	13.81	9.31	0.50	1.50	4.50
3/8*6	1000	0.83	0.38	2.30	16.50	10.50	17.72	11.72	0.56	1.77	6.00
1/2*6	1500	1.88	0.50	2.94	18.82	11.82	20.38	13.38	0.66	2.28	6.00
1/2*12	1500	2.77	0.50	2.94	30.82	17.82	32.38	19.38	0.66	2.28	12.00
5/8*6	2250	3.21	0.63	3.69	20.50	13.25	22.50	15.25	0.90	2.81	6.00
5/8*12	2250	4.58	0.63	3.69	32.50	19.25	34.50	21.25	0.90	2.81	12.00
3/4*6	3000	4.20	0.75	4.52	22.38	14.88	24.78	17.28	0.98	3.33	6.00
3/4*12	3000	6.92	0.75	4.52	34.38	20.88	36.78	23.28	0.98	3.33	12.00
3/4*18	3000	8.65	0.75	4.52	46.38	26.88	48.78	29.28	0.98	3.33	18.00
7/8*12	4000	9.85	0.88	5.19	36.00	22.25	38.75	25.00	1.13	3.78	12.00
1*12	5000	11.93	1.00	5.84	37.63	23.63	40.69	26.69	1.25	4.25	12.00
1*18	5000	14.00	1.00	5.84	49.63	29.63	52.69	32.69	1.25	4.25	18.00
1*24	5000	17.25	1.00	5.84	61.63	35.63	64.69	38.69	1.25	4.25	24.00
1 1/4*12	6500	20.58	1.25	7.22	40.44	25.94	44.06	29.56	1.50	5.13	12.00
1 1/4*18	6500	23.00	1.25	7.22	52.44	31.94	56.06	35.56	1.50	5.13	18.00
1 1/4*24	6500	27.00	1.25	7.22	64.44	37.94	68.06	41.56	1.50	5.13	24.00
1 1/2*12	7500	27.50	1.50	8.34	43.94	28.94	47.44	32.44	1.88	5.75	12.00
1 1/2*18	7500	31.00	1.50	8.34	55.96	34.94	59.44	38.44	1.88	5.75	18.00
1 1/2*24	7500	37.50	1.50	8.34	67.94	40.94	71.44	44.44	1.88	5.75	24.00

OUR

ADVANTAGE

1.4 perfect forging lines – our main products include standard rigging products and customized products, the annual production capacity is 3000T.

2.Track the whole production process from raw materials to finished products and strictly control the process flow.

3.With an experienced R&D and design team of 5 people, we can make professional 3D modeling and product animation,provide you product and packaging customization.

4.Insisted on “customer-centric” business philosophy, and strive to provide customers with high quality, efficient and personalized service.

5.Strictly control quality of every batch product, inspecting and test before shipment.
