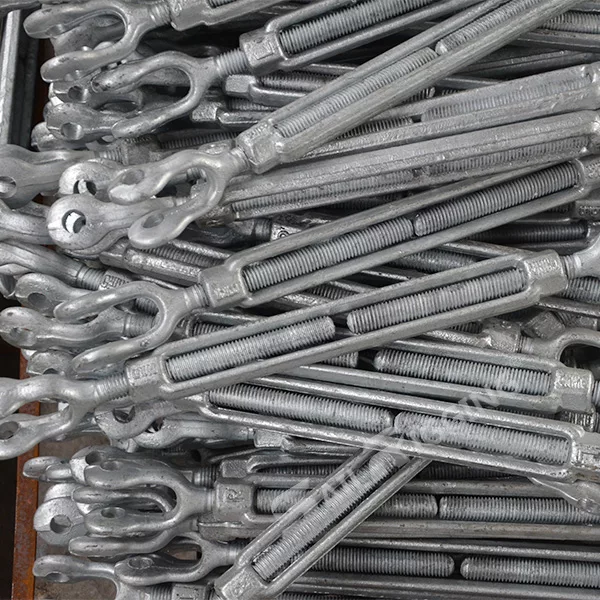

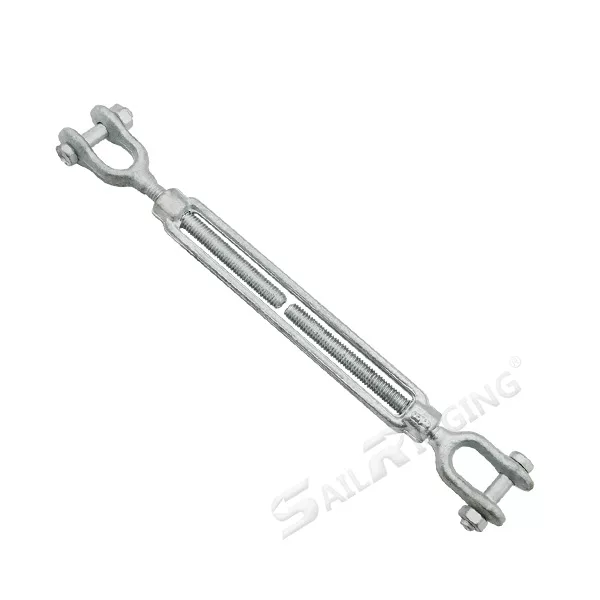

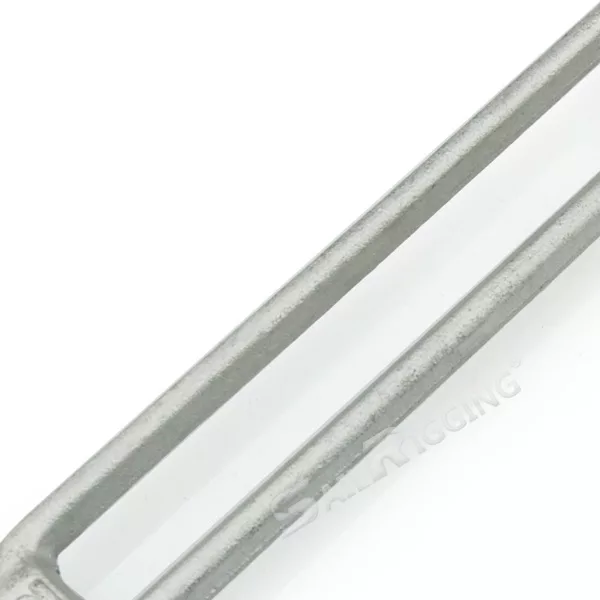

US Type Drop Forged Jaw And Jaw Turnbuckles have 2 jaw fitting on opposite ends to connect ropes or rods. Jaw And Jaw Turnbuckles are made from high tensile carbon steel ( C1045), hot dip galvanized or electro galvanized. The ultimate load is 5 times of the WLL, which ensures reliable performance. They are produced by ASTM1145 and ASME B30.26 and undergo strict inspection before delivery. It is ideal for contruction, marine and industrial applications.
Feature:
| Size(in) | WLL (Ibs) |
Weight (Ibs) |

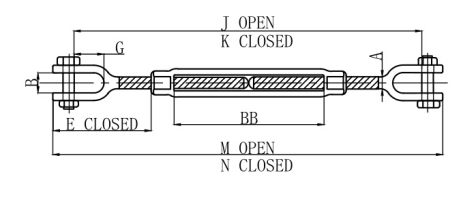

Dimensions(in) | ||||||||
| A | B | E Closed |
G | J Open |
K Closed |
M Open |
N Closed |
BB | |||
| 1/4*4 | 500 | 0.36 | 0.25 | 0.41 | 1.58 | 0.62 | 10.90 | 6.90 | 11.90 | 7.90 | 4.00 |
| 5/16*4.1/2 | 800 | 0.52 | 0.31 | 0.47 | 1.98 | 0.87 | 12.36 | 8.36 | 13.90 | 9.40 | 4.50 |
| 3/8*6 | 1200 | 0.81 | 0.38 | 0.50 | 2.12 | 0.87 | 16.14 | 10.14 | 17.38 | 11.38 | 6.00 |
| 1/2*6 | 2200 | 1.50 | 0.50 | 0.63 | 2.75 | 1.06 | 17.50 | 11.50 | 19.00 | 13.00 | 6.00 |
| 1/2*9 | 2200 | 1.74 | 0.50 | 0.63 | 2.75 | 1.06 | 23.50 | 14.50 | 25.00 | 16.00 | 9.00 |
| 1/2*12 | 2200 | 2.46 | 0.50 | 0.63 | 2.75 | 1.06 | 29.50 | 17.50 | 31.00 | 19.00 | 12.00 |
| 5/8*6 | 3500 | 2.72 | 0.63 | 0.75 | 3.50 | 1.31 | 18.80 | 12.80 | 20.88 | 14.88 | 6.00 |
| 5/8*9 | 3500 | 3.24 | 0.63 | 0.75 | 3.50 | 1.31 | 24.80 | 15.80 | 26.88 | 17.88 | 9.00 |
| 5/8*12 | 3500 | 3.74 | 0.63 | 0.75 | 3.50 | 1.31 | 30.80 | 18.80 | 32.88 | 20.88 | 12.00 |
| 3/4*6 | 5200 | 4.11 | 0.75 | 0.94 | 4.18 | 1.50 | 20.00 | 14.00 | 22.60 | 16.60 | 6.00 |
| 3/4*9 | 5200 | 5.10 | 0.75 | 0.94 | 4.18 | 1.50 | 26.00 | 17.00 | 28.60 | 19.60 | 9.00 |
| 3/4*12 | 5200 | 5.65 | 0.75 | 0.94 | 4.18 | 1.50 | 32.00 | 20.00 | 34.60 | 22.60 | 12.00 |
| 3/4*18 | 5200 | 7.00 | 0.75 | 0.94 | 4.18 | 1.50 | 44.00 | 26.00 | 46.60 | 28.60 | 18.00 |
| 7/8*12 | 7200 | 8.17 | 0.88 | 1.13 | 4.85 | 1.75 | 33.36 | 21.36 | 36.32 | 24.32 | 12.00 |
| 7/8*18 | 7200 | 9.96 | 0.88 | 1.13 | 4.85 | 1.75 | 43.36 | 27.36 | 48.32 | 30.32 | 18.00 |
| 1*6 | 10000 | 8.56 | 1.00 | 1.19 | 5.53 | 2.06 | 22.72 | 16.72 | 26.06 | 20.06 | 6.00 |
| 1*12 | 10000 | 12.00 | 1.00 | 1.19 | 5.53 | 2.06 | 34.72 | 22.72 | 38.06 | 26.06 | 12.00 |
| 1*18 | 10000 | 14.00 | 1.00 | 1.19 | 5.53 | 2.06 | 46.72 | 28.72 | 50.06 | 32.06 | 18.00 |
| 1*24 | 10000 | 17.00 | 1.00 | 1.19 | 5.53 | 2.06 | 58.72 | 34.72 | 62.06 | 38.06 | 24.00 |
| 1-1/4*12 | 15200 | 21.50 | 1.25 | 1.75 | 7.21 | 2.81 | 37.34 | 25.34 | 41.54 | 29.54 | 12.00 |
| 1-1/4*18 | 15200 | 24.25 | 1.25 | 1.75 | 7.21 | 2.81 | 49.34 | 31.34 | 53.54 | 35.54 | 18.00 |
| 1-1/4*24 | 15200 | 28.00 | 1.25 | 1.75 | 7.21 | 2.81 | 61.34 | 37.34 | 65.54 | 41.54 | 24.00 |
| 1-1/2*12 | 21400 | 30.50 | 1.50 | 2.06 | 7.88 | 2.81 | 38.50 | 26.50 | 43.50 | 31.50 | 12.00 |
| 1-1/2*18 | 21400 | 36.75 | 1.50 | 2.06 | 7.88 | 2.81 | 50.50 | 32.50 | 55.50 | 37.50 | 18.00 |
| 1-1/2*24 | 21400 | 40.67 | 1.50 | 2.06 | 7.88 | 2.81 | 62.50 | 38.50 | 67.50 | 43.50 | 24.00 |
| 1-3/4*18 | 28000 | 55.04 | 1.75 | 2.38 | 9.40 | 3.38 | 53.38 | 35.38 | 59.18 | 41.18 | 18.00 |
| 1-3/4*24 | 28000 | 63.36 | 1.75 | 2.38 | 9.40 | 3.38 | 65.38 | 41.38 | 71.18 | 47.18 | 24.00 |
| 2*24 | 37000 | 94.25 | 2.00 | 2.50 | 11.86 | 3.69 | 69.54 | 45.54 | 76.72 | 52.12 | 24.00 |
| 2-1/2*24 | 60000 | 165.00 | 2.50 | 2.88 | 13.56 | 4.44 | 72.98 | 48.98 | 82.18 | 58.18 | 24.00 |
| 2-3/4*24 | 75000 | 198.00 | 2.75 | 3.50 | 15.22 | 4.19 | 74.75 | 50.75 | 85.50 | 61.50 | 24.00 |
