U-bolt clips (also known as U-bolt wire rope clips) are essential components used in rigging and lifting operations. These clips are designed to secure wire rope or cable by creating a reliable connection point for lifting or securing loads. Whether you’re working in construction, marine, or transportation industries, U-bolt clips provide a simple, yet effective way to create a permanent loop in the wire rope, ensuring a secure connection for various applications.
In this article, we’ll explore what U-bolt clips are, how they work, and their applications in different industries.
1. What Is a U-Bolt Clip?

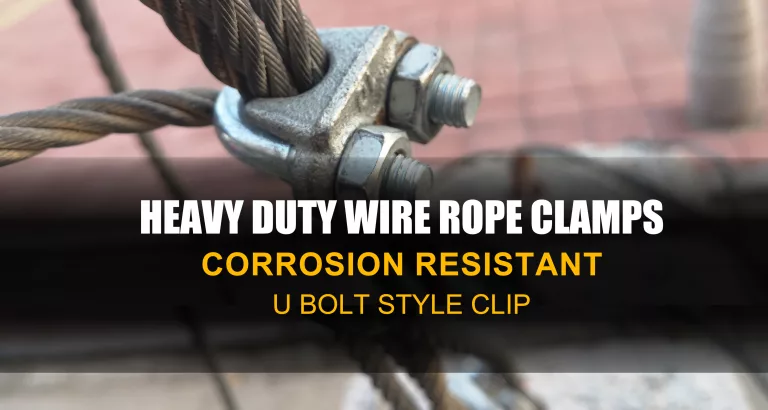

A U-bolt clip consists of a U-shaped bolt, a forged steel saddle, and a nut. The wire rope is looped around the U-bolt, and the saddle is placed on top of the rope to create a tight clamp when the nuts are tightened. The U-bolt clip is designed to secure the wire rope in place and form a strong connection point.
Key Components of a U-Bolt Clip:
- U-Bolt:The U-shaped steel bolt is the main component of the clip. It wraps around the wire rope and is secured with a nut on either end.
- Saddle:A steel plate that sits on top of the wire rope. The saddle is typically forged to ensure durability and strength.
- Nuts:Used to tighten the U-bolt, ensuring the rope is securely clamped between the saddle and the bolt.
2. How Does a U-Bolt Clip Work?
The installation of a U-bolt clip is relatively simple. The process involves the following steps:
- Positioning the Clip:Place the U-bolt around the wire rope, ensuring that the wire rope fits snugly within the U-shaped bolt.
- Placing the Saddle:The saddle is positioned on top of the wire rope, and the U-bolt is inserted through the holes of the saddle.
- Securing the Nuts:Tighten the nuts onto the U-bolt to compress the wire rope between the saddle and the U-bolt, forming a secure clamp. The nuts must be tightened evenly to prevent damage to the rope.
- Torqueing the Nuts:Once the nuts are tightened, torque them to the recommended specifications. This ensures that the clip remains secure under load and prevents it from loosening during use.
Important Tip:
When installing multiple U-bolt clips, make sure the saddle is always positioned on the live end of the rope, while the U-bolt is positioned on the dead end (the part that is not carrying the load). This ensures that the clip maintains its strength and performs as intended.
3. Advantages of U-Bolt Clips
U-bolt clips are widely used due to their numerous advantages. Here are some of the key benefits of using U-bolt clips:
- Easy to Install
U-bolt clips are relatively easy to install and require minimal tools. With basic hand tools, they can be attached to wire rope in a matter of minutes, making them a popular choice for quick setups.
- Cost-Effective
Compared to other wire rope securing devices, U-bolt clips are an affordable option that offers high performance at a reasonable cost.
- Versatile
U-bolt clips are versatile and can be used with a wide range of wire rope sizes and materials. They are suitable for both light-duty and heavy-duty applications, making them ideal for a variety of industries.
- Durable and Reliable
Made from high-strength materials such as carbon steel or stainless steel, U-bolt clips are built to last and can withstand harsh weather conditions, heavy loads, and abrasive environments.
- Adjustable
One of the key advantages of U-bolt clips is their adjustability. The nuts can be tightened or loosened to change the tension or alignment of the wire rope, allowing for greater flexibility during installation or maintenance.
4. Common Applications of U-Bolt Clips
U-bolt clips are used in various industries for different applications. Here are some of the most common uses:
- Rigging and Lifting
U-bolt clips are commonly used in rigging applications, where they create secure loops in wire ropes for lifting equipment, machinery, and other loads. They provide a strong, reliable attachment point for lifting slings, hooks, and other rigging accessories.
- Suspension Systems
In suspension systems, U-bolt clips are used to secure wire ropes or cables to structures such as bridges, cranes, and overhead rigging systems. Their strength and reliability make them ideal for holding cables under tension.
- Marine Applications
U-bolt clips are used in marine environments to secure anchor lines, mooring ropes, and other essential equipment. Their corrosion-resistant properties (especially in stainless steel) make them suitable for use in wet and salty environments.
- Construction and Heavy Equipment
In the construction industry, U-bolt clips are often used to secure cables and rigging components, such as hoists and cranes. They help ensure the safe transportation of heavy materials and equipment.
- Agriculture
In agriculture, U-bolt clips are used in fencing and hoisting applications. They provide a quick and secure method of attaching wire or cables to posts or structures.
5. Safety Considerations and Installation Tips
While U-bolt clips are generally safe to use, it is essential to follow safety guidelines during installation and maintenance:
- Correct Sizing
Always ensure that the U-bolt clip is sized correctly for the wire rope. Using a clip that is too large or too small can lead to improper clamping, resulting in an unsafe connection.
- Proper Torqueing
Over-tightening or under-tightening the nuts can cause the clip to fail. Always torque the nuts according to the manufacturer’s specifications to ensure the correct tension is applied to the rope.
- Re-torqueing
After the wire rope is loaded and tensioned, check the U-bolt clips to ensure they are still secure. Sometimes, the clips may need to be re-torqued after a test load or after the system has been in use for a while.
- Regular Inspections
Inspect U-bolt clips regularly for signs of wear, corrosion, or damage. A damaged clip should be replaced immediately to avoid compromising safety.
U-bolt clips are an essential tool in rigging, lifting, and securing applications. With their simplicity, cost-effectiveness, and versatility, they are widely used across various industries, from construction and agriculture to marine and heavy equipment. By properly selecting, installing, and maintaining U-bolt clips, you can ensure a safe and secure connection for your wire rope systems, keeping your operations running smoothly and efficiently. For any more question, you could contact Sail Rigging.
